Vigo is the UK agent for Bared. Bared have specialised in membrane technologies for the drinks industry for over 30 years and employ a team of highly skilled crossflow filtration specialists.

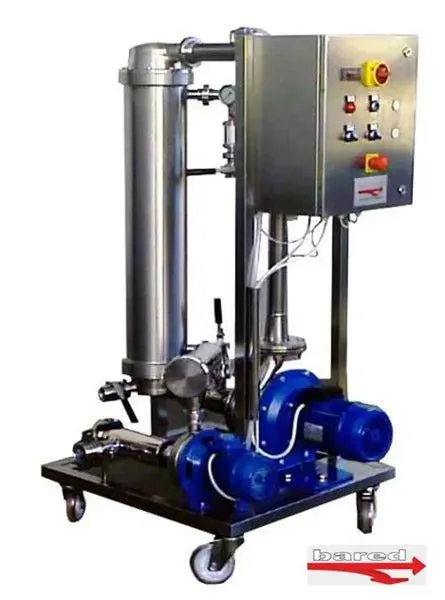

Bared's B range of cross flow filters are suitable for filtering wine, cider, and some other drinks. See the Features tab below for more information on cross flow filtration.
- Models available with flow rates from 700 up to 10,400 litres per hour - see Specification
- Double AISI 304 stainless steel pre-filter with stainless steel pleated cartridge
- Filtering modules with stainless steel housings and capillary polymeric (PP) membranes of 0.2 micron nominal pore size
- Centrifugal feeding pump, AISI 304 stainless steel
- Stainless steel recirculation pump, AISI 316 stainless steel
- Automatic back wash system operated by counter current pumping device
- Filtrate flow meter, observation glass, rates regulation valve, sample tap and pressure gauge
- Safety pressure switch device and working pressure gauges on loop section
- CIP system consists of double water pre-filter disposable polypropylene cartridge with pressure gauge and stainless steel buffer tank on wheels
- Control panel functions: recirculation pump, feeding pump, actuate valve, back-flushing settings, and thermometer/thermostatic device with alarm set point
- Stainless steel finishing: Internal surfaces 2B, polished; External surfaces, pipes & accessories, mirror polished or 2B
- AISI 304 stainless steel frame on wheels
- All pipework AISI 304 stainless steel
Installed & commissioned by our Engineers.
Please call us on 01404 892100 to discuss your filtration requirements.
See the 'Bared' tab (below) for customer Case Studies.
